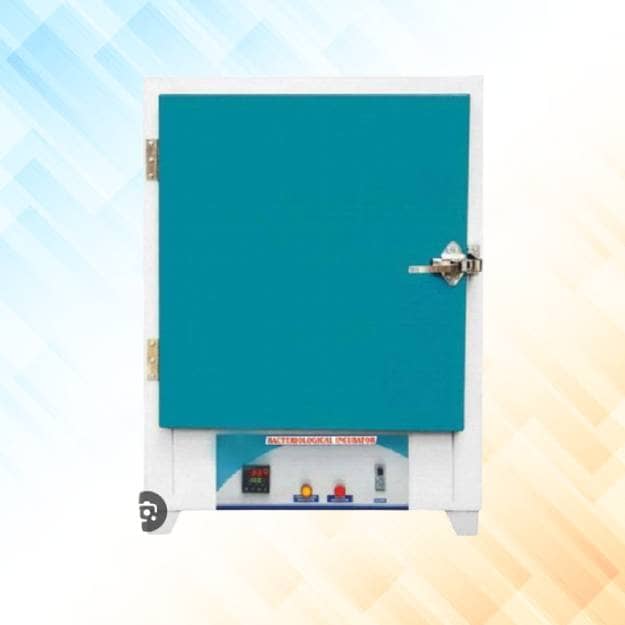

Bacteriological Incubator

Bacteriological Incubator Manufacturers and Exporters

This Bacteriological Incubator are made as per guideline of GMP supplied with IQ OQ & PQ document with calibration report for PID controller

Bacteriological Incubator
Bacteriological Incubators
Bacteriological Incubators GMP Model
» Triple walled construction
» Inner made of S.S.316 mirror polished
» Outer made of S.S.304 Dull finish
» Gap between the two walled filled with glass wool insulation of 65 mm
» Heating Element is made of S. S. ‘U’ type tubular nichrome wire with S.S. Sheathing
» Heaters are placed at the right & left side of the inner chamber
» PID Controller with auto tuning facility with double display to view set & current temp
» Temp. Range 5 C above ambient to 60 C with accuracy of ± 0.5 C.
» Silicon rubber gasket fitted on door to prevent lost of heat
» Control Switch & pilot lamp are fitted on front panel supplied with S.S. Rod Type Jali


Inner Size Size in Inches (W X D X H) No.of Shelves Capacity In LTR Rating Watts
12"x12"x12" 1 27 250
14"x14"x14" 2 42 300
18"x18"x18" 3 90 400
18"x18"x24" 4 120 700
24"x24X"24" 4 215 1000
24"x24"x36" 5 320 1500

Optional Accessories
» Digital Timer to cut off the heater at set interval
» PID Controller with Printer interface to record
» Set Valves & actual valves data & Time
» 80 Column DOT MATRIX Printers
» Safety controller with alarm for Temp. Overshoot
» Single 4 point/8 point data logger
